| Place of Origin: | CHINA |
| Brand Name: | JIMA Aluminum |
| Certification: | BV,CE,SGS,ISO9001 |
| Model Number: | 6061 7075 |
| Minimum Order Quantity: | Negotiations |
|---|---|
| Price: | Negotiations |
| Packaging Details: | wooden pallet |
| Delivery Time: | 20～30days |
| Payment Terms: | L/C, , T/T |
| Supply Ability: | 10000 tons per month |
| Name: | 6061 H112 EN AW-Al Mg1SiCu H112 A6061 Forged Tubes (Hydrogen Cylinders) | Alloy: | 6061 H112 EN AW-Al Mg1SiCu H112 A6061 |
|---|---|---|---|
| Process: | Free Forging + CNC +Flaw Detection | Standard: | YS/T479-2005 |
| Highlight: | anodized aluminum sheet metal,colored anodized aluminum sheets |
||

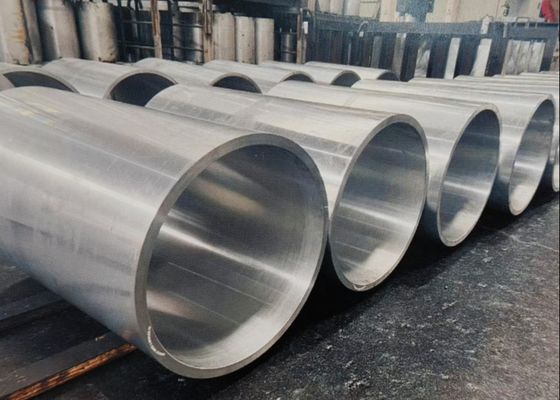

6061 H112 EN AW-Al Mg1SiCu H112 A6061 Forged Tubes (Hydrogen Cylinders)
Mechanical Property:
Mechanical Property
|
|
Alloy State
|
AA6061 H112 EN AW-6061 H112 EN AW-Al Mg1SiCu H112
|
Process
|
Free Forging + CNC +Flaw Detection
|
Sample Size
|
∅491mm*∅490mm*840mm
|
Size
|
Customized
|
MOQ
|
1PCS
|
Standard
|
YS/T479-2005
|
Inner Diameter Tolerance
|
-0.5mm~+2.5mm
|
Straightness
|
≤1mm/m
|
Application:
1,Energy field: Hydrogen energy storage (manufacture of hydrogen cylinders).
2,Transportation field: automobiles (wheels, frames.), aerospace (wings, fuselage frames.), and ships (masts, fittings).
3,Mechanical engineering field: mechanical parts (brake pistons, valves)
Material Properties:
Material Properties
|
Values
|
Tensile Strength
|
310 MPa
|
Yield Strength
|
276 MPa
|
Elongation
|
12%
|
Hardness
|
95 HB
|
Corrosion Resistance
|
High Corrosion Resistance
|
Machinability
|
Good, Easy to Forge, Weld, Machine
|
Toughness
|
High
|
Density
|
Around 2650 kg/m³
|
Elastic Modulus
|
68.9 GPa
|
Forging process:
1,Heating
2,Forging operation: free forging or die forging
3,Cooling
4,Subsequent treatment: Heat treatment such as solution treatment, aging treatment, and surface treatment such as machining, pickling,
anodizing
