| Place of Origin: | CHINA |
| Brand Name: | JIMA Aluminum |
| Certification: | BV,CE,SGS,ISO9001 |
| Model Number: | 5005,or any alloy |
| Minimum Order Quantity: | Negotiations |
|---|---|
| Price: | Negotiations |
| Packaging Details: | wooden pallet |
| Delivery Time: | 20～30days |
| Payment Terms: | L/C, , T/T |
| Supply Ability: | 10000 tons per month |
| Name: | 2A14 A92014 A2014 24345 AK8 1380 EN AW-2014 AlCuSiMn Body Molded Parts For Military Industry | Alloy: | 2A14 A92014 A2014 24345 AK8 1380 EN AW-2014 |
|---|---|---|---|
| Application: | 1、Aircraft Components: Wing Structures (ribs, Spars), Fuselage Frames. 2、Missile And Rocket Bodies: Structural Shells, Mounting Brackets. | Sample: | Can Be Supplied |
| Highlight: | anodized aluminum sheet metal,colored anodized aluminum sheets |
||

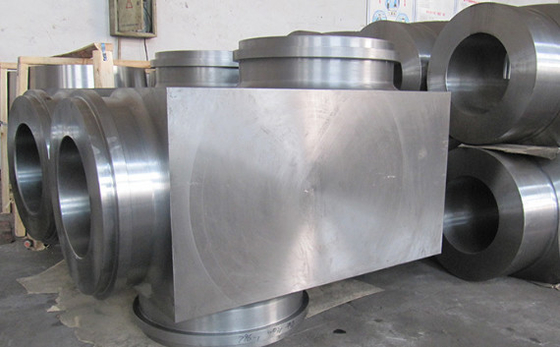

2A14 A92014 A2014 24345 AK8 1380 EN AW-2014 AlCuSiMn Body Molded Parts For Military Industry
Mechanical Property:
Mechanical Property
|
||
TensileStrength at the core(MPa)
|
Yield Strengt(MPa)
|
Elongation(%)
|
＞410mpa
|
＞250mpa
|
＞8%
|
Case Size
|
∅1800*∅1580*310
|
|
detail
|
Aerospace drop-forged parts, double AA level flaw detection, very complex subsequent machining, high dimensional accuracy and low distortion
|
|
Alloy State
|
2A14 A92014 A2014 24345 AK8 1380 EN AW-2014 AlCuSiMn 3.1255 2014(H15) 2014(A-U4SG)
|
|
Process
|
Free Forging + CNC +Flaw Detection
|
|
Size
|
Customized
|
|
MOQ
|
1PCS
|
|
Application:
1,Aircraft Components: Wing structures (ribs, spars), fuselage frames.
2,Missile and Rocket Bodies: Structural shells, mounting brackets.
3,Military Vehicle Components: Armored vehicle housings, weapon mounts.
4,Military Equipment Enclosures: Communication equipment boxes, navigation system housings.
Forging process:
1. Ingot preparation: Quality inspection, optional pre - heating treatment.
2. Determination of forging temperature.
3. Die design and preparation: Custom die design, die material selection and heat treatment.
4. Forging operation: Initial forging (pre - forming), finish forging.
5. Post - forging treatment: Quenching, aging treatment, surface treatment.
