| Place of Origin: | CHINA |
| Brand Name: | JIMA |
| Certification: | ISO9001-2008,SGS,ROHS. |
| Model Number: | ALP |
| Minimum Order Quantity: | Negotiations |
|---|---|
| Price: | Negotiations |
| Packaging Details: | wooden pallet |
| Delivery Time: | 10~20days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 10000 pcs /per month |
| Application: | Aerospace Field: Aircraft Landing Gear Components Including Axle Sleeves, Torque Links, Engine Mounts And Brackets. | Name: | 6061 T6 A96061 A6061 65032 6061（N20） Forged Ring For Military Industry |
|---|---|---|---|
| Alloy: | 6061 T6、6061T6、A96061、A6061、65032、6061（N20）、EN AW-6061、6061（A-GSUC） | Process: | Forging |
| Highlight: | Military Industry Forged Ring,6061 T6 Forged Ring,6061 Forged Ring |
||
6061T6&A96061&A6061&65032&6061(N20) Forged Ring For Military Industry
Mechanical Property:
Mechanical Property
|
||
TensileStrength at the core(MPa)
|
Yield Strengt(MPa)
|
Elongation(%)
|
＞300mpa
|
＞230mpa
|
＞12%
|
Alloy State
|
6061T6,6061T6,A96061,A6061,65032,6061(N20),EN AW-6061,6061(A-GSUC)
|
|
Advantage
|
Double - AA flaw detection, the yield strength is greater than 205 MPa at 140°C.
|
|
Size
|
Customized
|
|
Process
|
Free Forging + CNC +Flaw Detection
|
|
MOQ
|
1PCS
|
|
Application:
1. Aerospace Field: Aircraft landing gear components including axle sleeves, torque links, engine mounts and brackets. 2. Military Vehicle Applications: Wheel hubs and axles, gun mounts and turret rings. 3. Missile and Ordnance Systems: Missile body sections, ordnance mounting structures. 4. Military Communication and Radar Equipment: Antenna mounts and rotating platforms, equipment enclosures and support frames.
Forging process:
1. Ingot Preparation: Quality Inspection, Homogenization Heat Treatment. 2. Determination of Forging Temperature. 3. Die Design and Preparation: Custom Die Design, Die Material Selection and Heat Treatment. 4. Forging Operation: Initial Forging (Pre-forming), Finish Forging. 5. Post-Forging Treatment: Solution Heat Treatment.
Other Products:
1,6061 T6Aerospace Grade Aluminum Forgings 2,6061 T6 T4 Aluminum Forging for military industry 3,Customize 6061 T6 Forged Aluminum ring 4,6061 forged aluminum 5,Forged 6061-t6 6,Forged 6061-t6 aluminum 7,Forged 6061 aluminum 8,Forged 6061-t6 aluminum wheels 9,6061 aluminum forging 10,Forged t6061

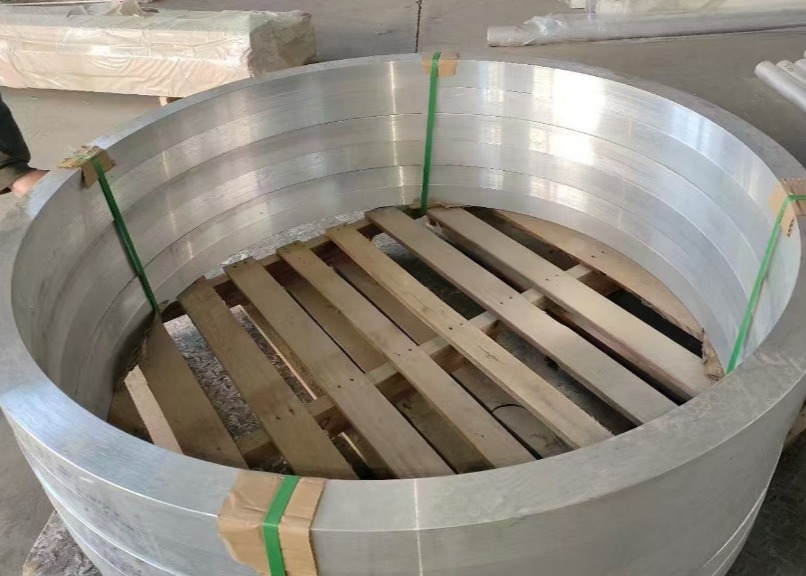

Product Packaging
